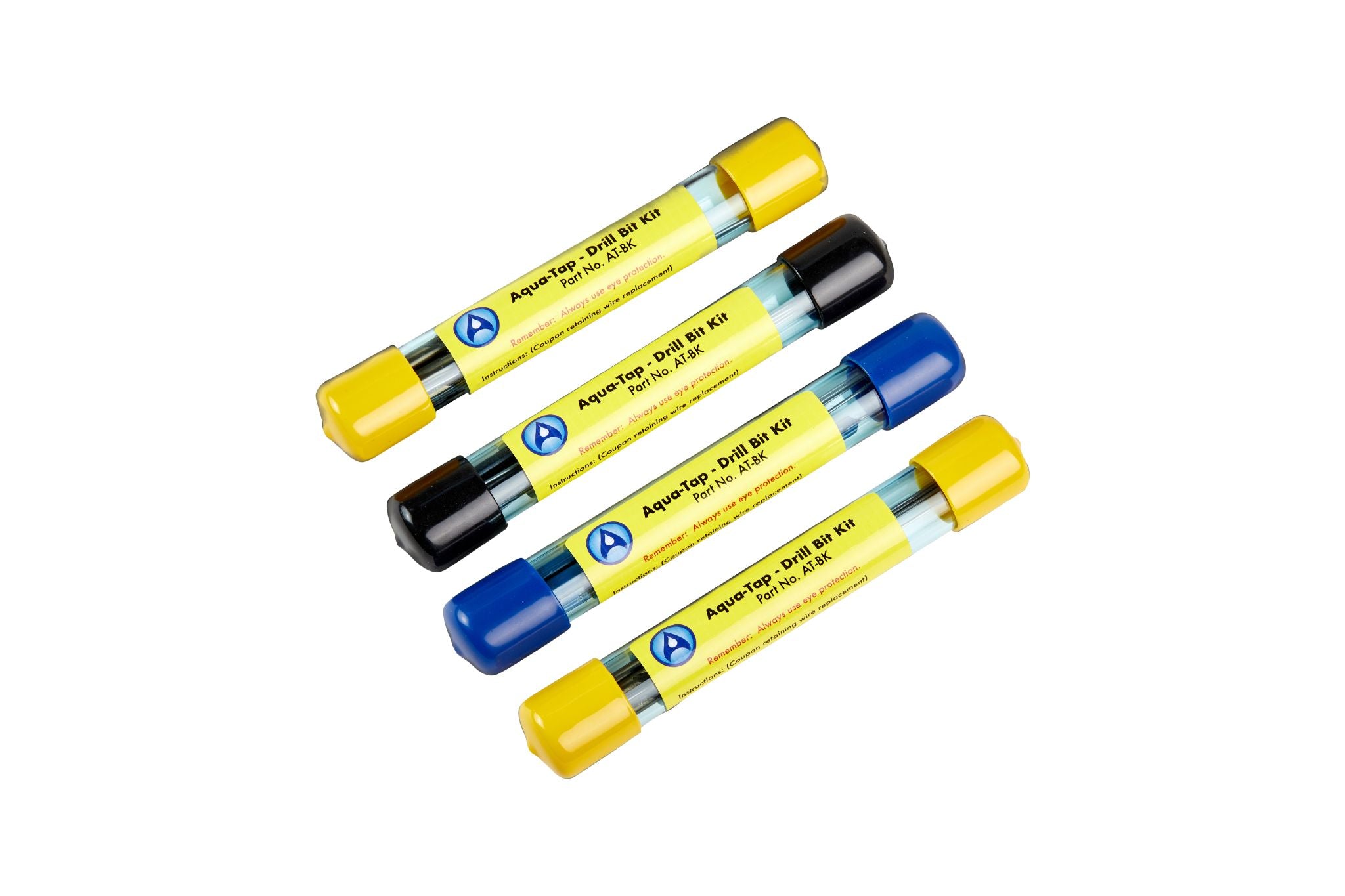

Bit Kits

AT-BK18-Blue:

Includes:

(4) "Blue" tungsten/carbide coupon retaining pilot bits and spare wire.

Best for PVC, Ductile/Cast Irons, and A.C. water mains. (underground)

*For Hard Steel Pipe, order one of the "Gold" bit kits*

Designed for: all 18" and longer drill rods and 13" Drill Rods with threads on the end.

AT-BK13-Black:

Includes:

(4) "Black" tungsten/carbide coupon retaining pilot bits and spare wire.

Best for PVC, Ductile/Cast Irons, and A.C. water mains. (underground)

*For Hard Steel Pipe, order one of the "Gold" bit kits*

For 13" drill rods with hex on end.

AT-BK18-Gold:

Includes:

(3) "Gold" high alloy pilot bits.

(2) "Blue" tungsten/carbide coupon retaining pilot bits and spare wire.

Best for; sched. 40/80 steel, Stainless steel, copper, etc.

For 18" & 24" drill rods.

NOTE: This is a two-step process. The gold pilot bit is used to penetrate the pipe wall and it needs to be switched with the blue pilot bit to catch the coupon.

AT-BK13-Gold:

Includes:

(3) "Gold" high alloy pilot bits.

(2) "Black" tungsten/carbide coupon retaining pilot bits and spare wire.

Best for; Sched. 40/80 steel, Stainless steel, copper, etc.

For 13" drill rods with hex on end.

NOTE: This is a two-step process. The gold pilot bit is used to penetrate the pipe wall and it needs to be switched with the black pilot bit to catch the coupon.

AT-BK-Mix:

Includes:

 (2) "Blue" pilot bits and (2) "Black" pilot bits with spare wire.

*For custom orders, contact us at 435-218-6704
